How to Stream Retro Games with Zero Added Lag Using HDMI Passthrough and a Lag-Free Monitor

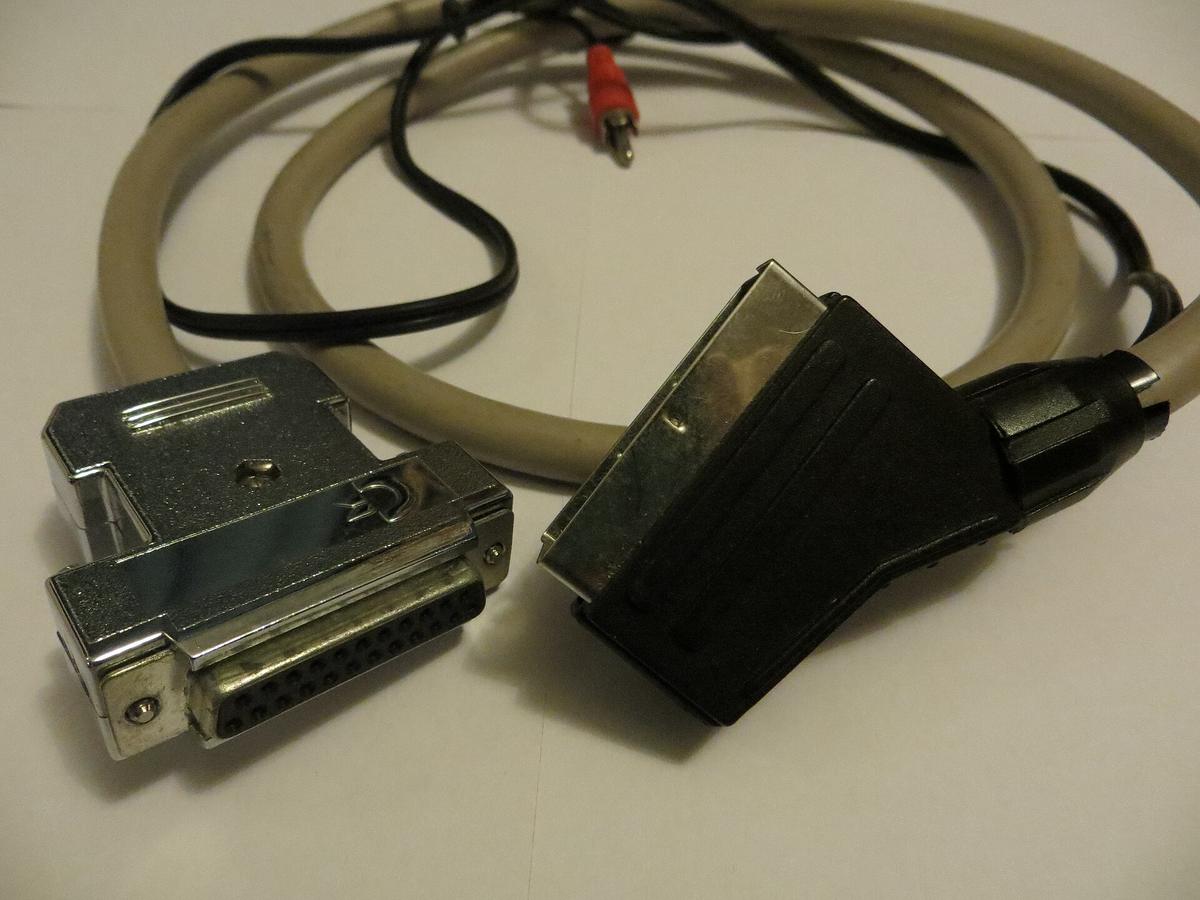

Your Super Famicom outputs 240p over RGB SCART into the RetroTINK 5X-Pro. The scaler lifts it to 1080p and sends it out over HDMI. Plug that HDMI cable into a lag-free splitter. Now you face the moment every retro streamer meets: one leg goes to your OLED in game mode, the other to your capture card. You have one chance to get this right. This guide diagrams the signal chain for a zero-lag passthrough monitor setup. It explains why the splitter, not the scaler, is where most rigs die.

The RetroTINK 5X-Pro delivers a clean 1080p signal with sub-millisecond latency. That signal must go two places at once. Your play screen needs it instantly. Your capture card needs it in a format the streaming software can record. A passive HDMI splitter duplicates the signal without processing. No added lag on either leg. But only if it passes the signal through untouched. The failure case is an active splitter with its own scaler chip. It re-times the signal and adds 1-3 frames of lag to both outputs. Read the splitter's chipset, not the box's marketing. A splitter that lists 4K upscaling is a scaler in disguise. It will destroy your timing.

Here is the trap that breaks more streaming rigs than any other single fault. Your capture card enforces HDCP 2.2. The moment it negotiates with the RetroTINK 5X-Pro's output, the handshake can fail. Display and scaler then enter an HDCP handshake loop. They re-negotiate the connection every few seconds. You get a blinking black screen. The game becomes unplayable. Shmups Forum threads document this exact failure with the RetroTINK 5X-Pro and common capture cards. The fix is not in the scaler's menu. You need a Dr HDMI EDID emulator on the capture leg. It presents a fixed EDID to the scaler and breaks the loop by removing the capture card from the handshake negotiation. Set the Dr HDMI to emulate a 1080p screen with HDCP disabled. The scaler will output a clean signal with no re-negotiation.

Choose a lag-free HDMI splitter that does not touch the signal. Its only job is to duplicate the HDMI data stream bit-for-bit. A passive splitter does this with zero processing time. Look for a unit with no scaling, no conversion, and no EDID manipulation of its own. Just a physical fan-out of the TMDS signal. The RetroTINK 5X-Pro outputs 1080p at 60Hz. A splitter rated for 4K60 will pass that signal without effort. Test the splitter with the 240p test suite's manual lag test before you commit. If the splitter adds any lag, the test pattern will show it as a shift between the moving and static bars.

The Dr HDMI is the standard tool for the HDCP handshake loop. It also solves the EDID mismatch that causes some capture cards to record a 1080i file from a clean 1080p output. The RetroTINK 5X-Pro reports its EDID correctly. A capture card with a buggy EDID implementation can still request interlaced mode. The scaler will oblige. Put the Dr HDMI on the capture leg. Set it to force 1080p60 with no audio channel problems. The capture card will record exactly what the scaler outputs. This is the passthrough config that Shmups Forum users settled on after years of trial and error: scaler to splitter, splitter to display, splitter to Dr HDMI, Dr HDMI to capture card.

Two failures kill a splitter-based setup. The first is the splitter's own lag. A cheap active unit with a re-clocking chip adds 1-2 frames of latency to both legs. You will not notice it until you try a rhythm game and the note hits the timing window a frame early. The second is chroma subsampling. A splitter that downsamples 4:4:4 to 4:2:0 softens the image and adds colour artifacts on the capture feed. The play screen may look fine. The RetroTINK 5X-Pro outputs 4:4:4 at 1080p. A splitter that preserves that chroma format is non-negotiable for a clean stream. If the splitter fails either test, replace it. No settings change on the scaler or capture software will recover the lost signal fidelity.

Verification is not optional. The 240p test suite's manual lag test presents a series of bars that scroll across the screen. The test's overlay shows a static reference bar. Photograph the screen with a high-shutter-speed camera. The lag between the moving and static bars appears as a displacement. Measure that displacement against the known scroll rate. Run this test on your play screen first, then on the capture feed. Compare the two numbers. The play screen should show zero to one frame of total lag with game mode enabled on a lag-free monitor. The capture feed will show whatever the capture card adds. On a modern card, expect 1-2 frames. If the capture feed shows more than two frames of displacement relative to the play screen, your splitter or Dr HDMI is the culprit.

Your play screen is part of the chain. A lag-free monitor with game mode enabled is the only acceptable endpoint for the play leg. A 4K OLED in game mode still adds 10-40ms of latency at 1080p. A TV without game mode can add 100ms or more. That is unplayable for shmups or rhythm games. The RTINGS.com input lag database publishes measured values for every major screen. Their tests show that the best 1080p monitors hit 5-8ms. Most 4K TVs in game mode sit at 10-15ms. Pick the screen with the lowest measured lag, not the cheapest. A lag-free monitor is not a luxury. It is the difference between a playable game and a smear.

The capture leg is not a display. It is a recorder. It does not need game mode. What it needs is a stable signal that the capture software can read without re-negotiating. The Dr HDMI on this leg presents a fixed EDID. This prevents the handshake loop and stops the capture card from requesting interlaced modes. Set the capture software to match the scaler's output resolution exactly: 1080p60. Disable any hardware deinterlacing in the capture card's driver. The scaler already did the deinterlacing. The capture feed will then record exactly what the play screen sees. No extra processing. No dropped frames.

You will hit the night when the splitter dies, the Dr HDMI is lost, and you still want to stream. The fallback: connect the RetroTINK 5X-Pro's HDMI directly to the capture card. Run a separate analogue cable from the console to the screen. This is the wrong answer for zero-lag play. It works for a test stream. The play screen gets a laggy signal. The capture feed stays clean. If you need playable lag and a clean capture with no splitter, your only option is to play through the capture card's passthrough port. That adds one frame of lag on the play leg. Accept the lag. Stream the game. Order a new splitter in the morning.

Two more settings bite streamers. HDMI-CEC lets devices control each other over HDMI. A capture card or screen with CEC enabled can send commands that change the input or power state of the scaler. The RetroTINK 5X-Pro does not pass CEC through. A screen that sends CEC commands can still cause the scaler to reboot if the EDID handshake is marginal. Disable CEC on every device in the chain. Black frame insertion inserts a black frame between game frames to reduce motion blur. It halves the perceived brightness. On some screens it adds no lag. On others it doubles the frame time and ruins timing. Check the screen's BFI setting with the 240p test suite's lag test. If BFI adds a frame, turn it off and live with the blur.

The RetroTINK 5X-Pro's input lag is 0.25-1.0ms in Frame Lock mode. The OSSC is sub-scanline in Line Multiplication mode. The splitter adds zero if it is passive. The Dr HDMI adds zero. The screen in game mode adds 5-15ms. The capture card adds 0-2 frames. Total play-side lag is the sum of the scaler, splitter, and screen: under 16ms at 1080p60. That is under one frame. If your measured total exceeds one frame, you have a problem in the chain. The 240p test suite will show you exactly where.

Why Does My Capture Card Cause a Blinking Black Screen?

The capture card enforces HDCP 2.2, which triggers a re-negotiation loop with the scaler. A Dr HDMI EDID emulator on the capture leg breaks the loop by presenting a fixed, non-HDCP EDID.

Can I Use a Single HDMI Cable From the Scaler to a Splitter?

Yes, and that is the recommended chain. The splitter must be passive and lag-free. The capture leg must have a Dr HDMI if the capture card causes a handshake loop.

Does the OSSC Have the Same Handshake Problem?

The OSSC is a line multiplier with no framebuffer and no HDCP enforcement. It is less likely to trigger the loop. A capture card that enforces HDCP on any input can still cause issues with the OSSC's 1080p output.

What Is the Difference Between 4:4:4 and 4:2:0 Chroma Subsampling?

4:4:4 preserves full colour resolution. 4:2:0 halves it. A splitter that downsamples to 4:2:0 softens the image and adds artifacts on the capture feed, even if the play screen looks fine.

How Do I Measure the Total Lag of My Setup?

Run the 240p test suite's manual lag test on the play screen and compare it to the capture feed. The difference is the capture card's added lag. The play screen's displacement is your total input lag.

Is a Gaming Monitor Required, or Can I Use a TV?

A TV in game mode is acceptable if its input lag is under 15ms at 1080p. Check RTINGS.com for measured values. Many 4K TVs in game mode add 30-40ms, which is too much for shmups or rhythm games.

Can I Use the mClassic Instead of a Splitter?

No. The mClassic is a signal processor with a claimed 1-2ms of lag. It has a single HDMI output. It cannot duplicate a signal; it only passes one through.

Component	Role	Added Lag	Notes
RetroTINK 5X-Pro	Scaler	0.25-1.0 ms	Frame Lock mode for zero added lag
OSSC	Scaler	<1 ms	Line Multiplication, no framebuffer
Passive HDMI Splitter	Signal duplication	0 ms	Must not re-clock or scale
Dr HDMI EDID Emulator	Handshake fix	0 ms	Breaks HDCP loop on capture leg
Lag-Free Monitor (Game Mode)	Play display	5-15 ms	Measure with RTINGS data
Capture Card	Recording	0-2 frames	Disable deinterlacing, match resolution

Order a passive 4K60 HDMI splitter with no scaling, a Dr HDMI EDID emulator, and a copy of the 240p test suite on the console of your choice. Assemble the chain. Run the lag test on both legs. Verify that the play screen shows under one frame of total lag before you stream a single game.

The Dr HDMI EDID emulator, set to force 1080p60 with HDCP disabled, is the only reliable fix for the HDCP handshake loop that the RetroTINK 5X-Pro triggers with capture cards enforcing HDCP 2.2, as documented in Shmups Forum threads.
